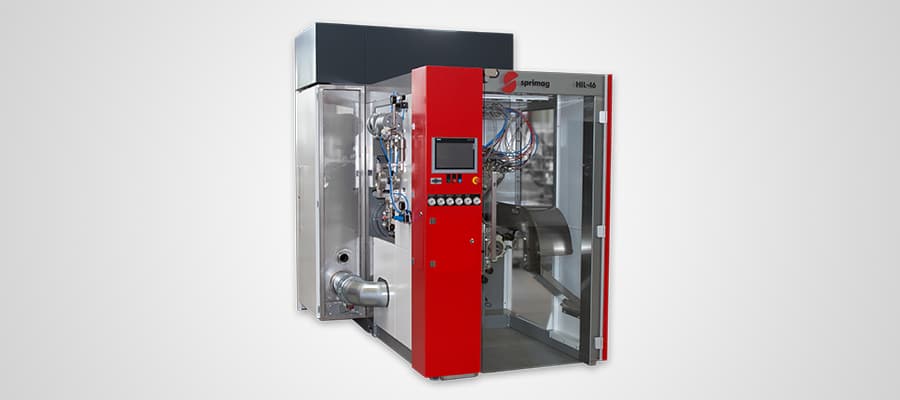

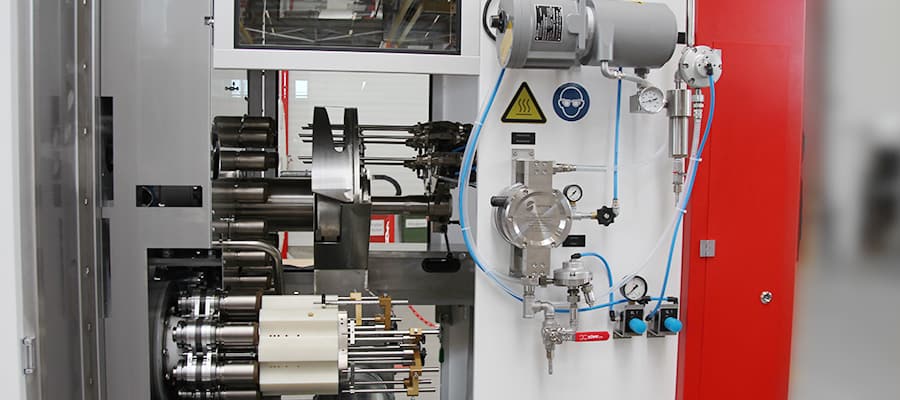

The HIL-46 NG internal coating machine for collapsible tubes impresses with its cost-, space- and energy-optimized coating concept. The internal coating machine, which is based on standard assemblies, is enhanced by energy-optimized system components, such as annealing furnaces and internal coating driers. Optionally, the machine can also be designed with an electrically heated evaporation zone as „HIL-48 NG“ to achieve the best coating results through intermediate drying between the individual coating processes.
- Compact machine design
- Machinery speed up to 180 tubes per minute

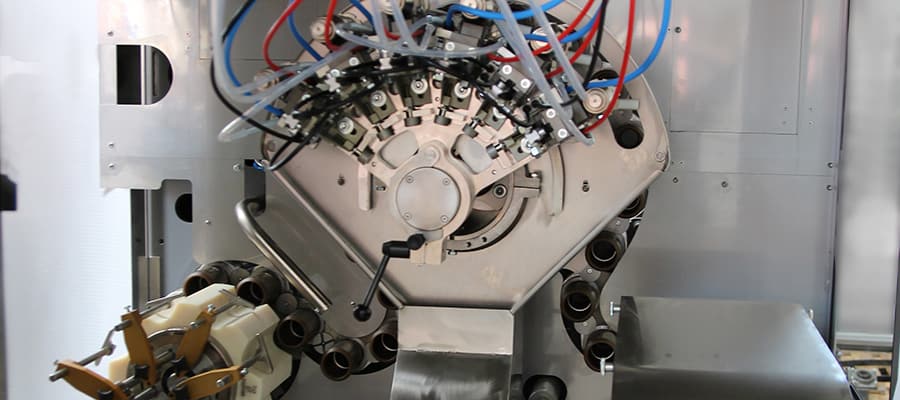

- Triple coating on 6 spray guns
- Increased operating convenience thanks to direct, electro-pneumatic control of the spray guns via HMI
- Separate servo drives for stroke and transport movement
- Proven quick-change system for size parts
- Height-adjustable and horizontally movable HMI panel
- Automatic part ejection during production process
- Machine dimensions adjusted to integrate in older production lines
- Manufactured in accordance with the ATEX-regulations
OPTIONS
- Additional lacquer supply
- Cleaning device for spray gun extensions
- Energy optimizing system and vacuum control
- Second spray arm with full spraying equipment assembly
- Suction device for tubes without membrane
- RFID-access verification system
- Division of spray gun groups into separately controlled circuits
TECHNICAL DATA
- Product range: Aluminum tubes
- Product diameter: Dmin 10 mm, Dmax50 mm
- Length: Lmin 70 mm, Lmax 220 mm
- Production speed: up to 180 tpm
- Spray guns/Spray process: 6/3 times

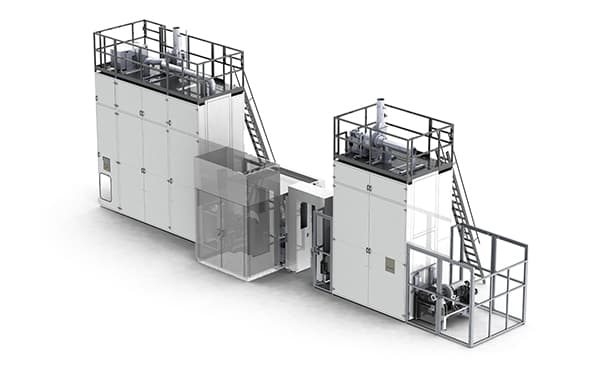

Annealing oven TGO + internal drier TIT
- 1- or 2-row transport chain with baskets
- Reduced wearout of the transport chain and the chain wheels by cardan-based drive system
- Chain tensioner with weight, electronically monitored
- Quadruple door lock
- Isolated doors with special door hinges for synchronized door closing
- Large outer doors with smooth surface on the oven‘s front and rear sides
- Quick and easy removal and reassembly of the shafts and chain wheels in case of service
